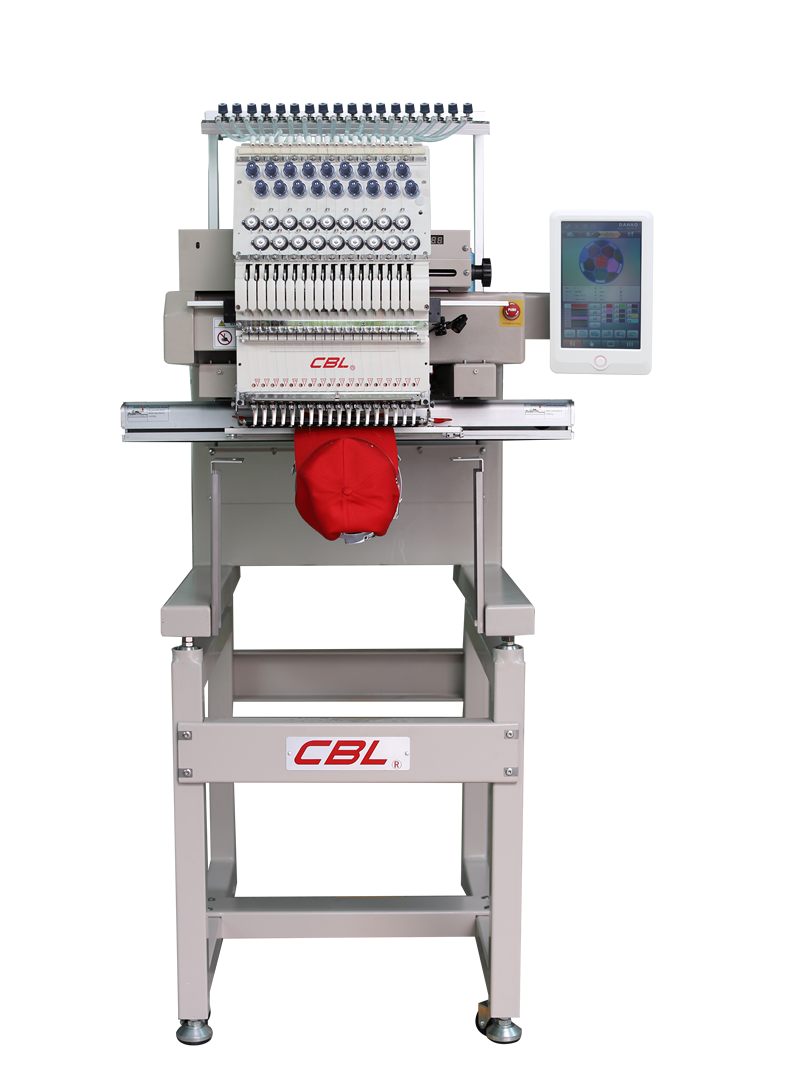

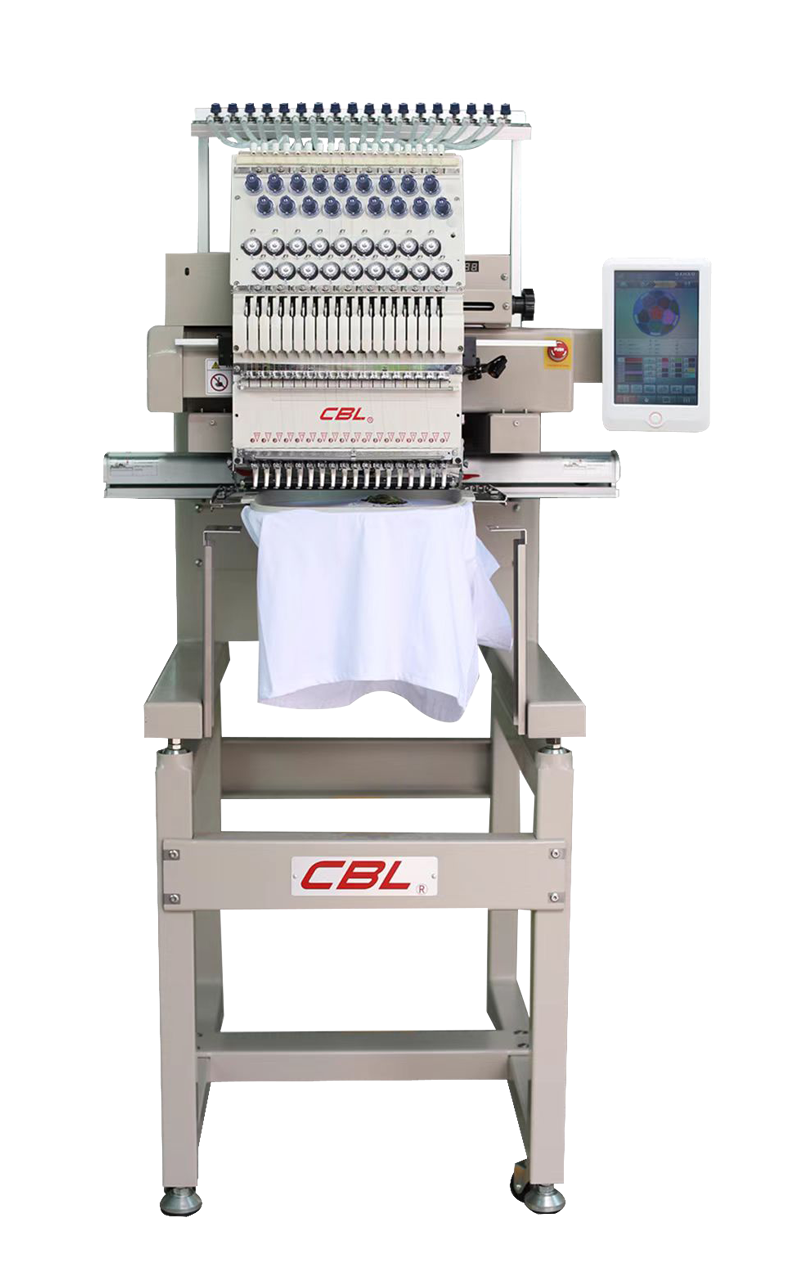

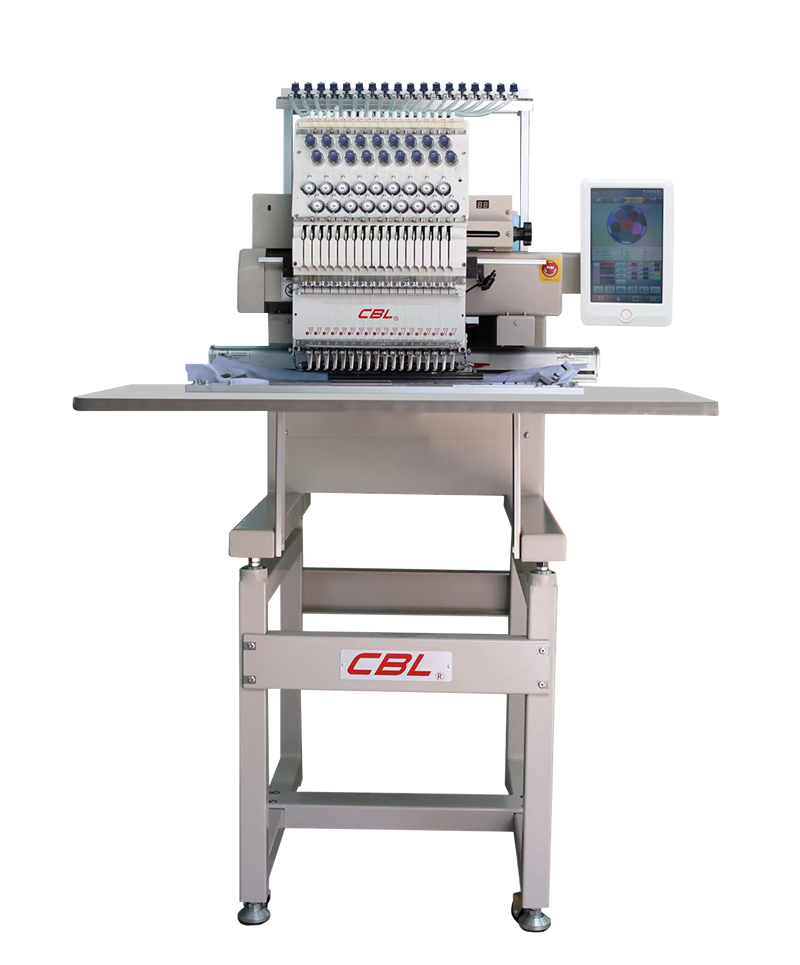

CBL Single Head Latest Automatic Computer Cap Computerized Embroidery Machine

Product Summary： Browse：41

This single-head embroidery machine is more compact and flexible. High precision, stable color change at high speed, can replace combination embroidery, save time, increase output, and bring more creativity to the clothing, handicrafts, and other industries.

Main configuration and features:

1. Integrated frame.

2. The machine features a high-speed and silent structure, supporting up to 1200 revolutions per minute, and the computer can store 200 million needles.

3. The embroidery machine's flower frame is driven by a full servo motor, ensuring precise and efficient embroidery. The belt is made of German Continental and is durable.

4. Silent design, the wire breaking method adopts the latest Bailingda type wire clamping seat, which accurately detects wire breaks and greatly improves production efficiency.

5. Original imported shuttle beds are adopted to reduce the rate of wire breakage.

6. The XY guide rails adopt linear guide rails.

7. Computer operation head: The latest A15 series electronic control.

8. The jumping method adopts motor jumping.

9. With surface wire clamping.

Detailed Introduction

This series of embroidery machines is equipped with automatic thread trimming, providing an embroidery range that can be customized according to customer requirements. It is suitable for high-end brand embroidery on knitted, woven, cotton, linen, leather, polyester, and fiber materials...
Application scenarios: Textiles and apparel, brand logos, badges, luggage, handbags, footwear, hats, plush toys, home textiles, bedding, water-soluble lace, curtains, wall decorations, car seat cushions, embroidery artworks, socks, etc...

Technical Specifications and Parameters

The following shows the number of heads, head spacing, number of needles, and detailed technical parameters and specifications of the product, which can be customized according to customer requirements.


Modle	Heads	Needles	EMB Area	Machine Dimension LWH
CBL-PC901	1	9	500X400mm/20"x16”	2650X1340X1720mm/ 102"X53'X68”
CBL-PC1201	1	12	500X400mm/20"x16”	3450X1340X1720mm 134"x53"X68”
CBL-PC1501	1	15	500X400mm/20"x16”	4250X1340X1720mm/ 165”x53X68”
CBL-PC1801	1	18	500X400mm/20"x16”	5050X1340X1720mm/ 299"X53”X68”

Effect Display

CBL Single Head Latest Automatic Computer Cap Computerized Embroidery Machine

🔍

Optional Accessories

Depending on requirements, suitable hanging accessories can be selected, such as laser accessories, beads, sequins, simple rope braid decorations, simple towels, toothbrush decorations, etc., to enhance product performance and functional expandability.

🔍

After-sales Service and Warranty Policy

We provide comprehensive after-sales support and warranty services to ensure your investment is protected for the long term.

📅

Warranty Period

Computer control components provide a one-year warranty, and mechanical components provide a two-year warranty within 100 kilometers of the service point. During the warranty period, faulty components will be repaired or replaced free of charge.

🔧
