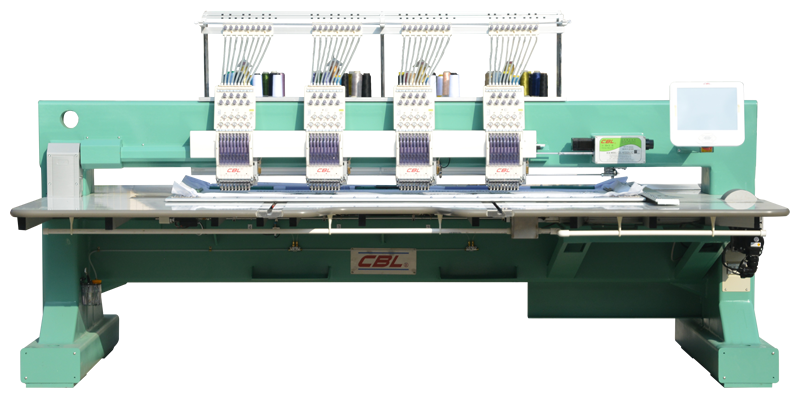

CBL 4 Heads High Speed Flat Computerized Embroidery Machine

Product Summary： Browse：85

The 4 heads high speed flat computerized embroidery machine ,can solve the problem of the embroidery is fast and exquisite.High precision, stable color change at high speed, can replace combination embroidery, save time, increase output, and bring more creativity to the clothing, handicrafts and other industries.

Main configuration and features:

1. High-strength bridge frame.

2. This machine adopts a high-speed and silent structure, supporting a rotational speed of up to 1,200 revolutions per minute, and the computer can store 100 million needles.

3. The frame of the embroidery machine is driven by a full servo motor, ensuring high embroidery accuracy and efficiency. The belt is custom-made in Taiwan and is durable.

4. Silent design, featuring the latest Belinda wire clamps for precise detection of broken wires, significantly enhances production efficiency.

5. Original imported shuttle beds are adopted to reduce the rate of broken threads.

6. The XY guide rails adopt linear guide rails.

7. Computer operation head: The latest Dahao A68 series electronic control.

8. The jumping method adopts motor jumping.

9. Fixtures with surface lines.

Detailed Introduction

This series of embroidery machines is equipped with automatic thread trimming, providing an embroidery range that can be customized according to customer requirements. It is suitable for high-end brand embroidery on knitted, woven, cotton, linen, leather, polyester, and fiber materials...
Application scenarios: Textiles and apparel, brand logos, badges, luggage, handbags, footwear, hats, plush toys, home textiles, bedding, water-soluble lace, curtains, wall decorations, car seat cushions, embroidery artworks, socks, etc...

Technical Specifications and Parameters

The following shows the number of heads, head spacing, number of needles, and detailed technical parameters and specifications of the product, which can be customized according to customer requirements.



Model	Needles	Heads	Head spacing	Embroidery Area	Max. Speed	Product Dimensions
CBL-JP904	9	4	400	400*750/600	1200spm	330020001600mm
CBL-JP920	9	20	400	400*750/600	1200spm	970020001600mm
CBL-JP924	9	24	400	400*750/600	1200spm	1130020001600mm

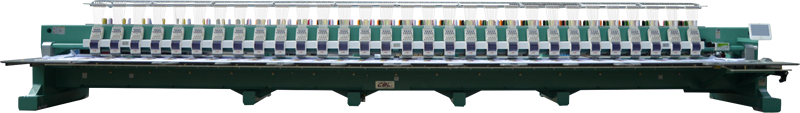

CBL-JP930	9	30	400	400*750/600	1200spm	1370020001600mm

Effect Display

CBL 4 Heads High Speed Flat Computerized Embroidery Machine

🔍

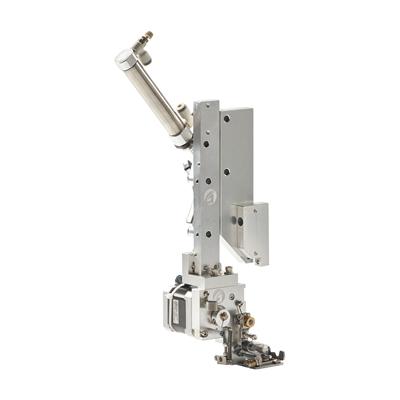

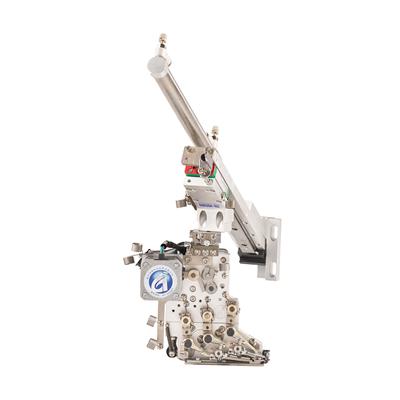

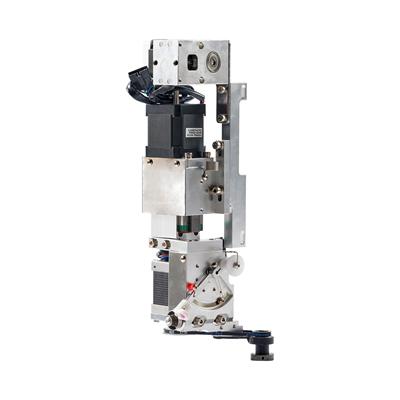

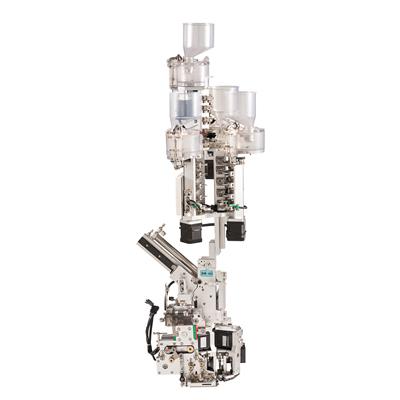

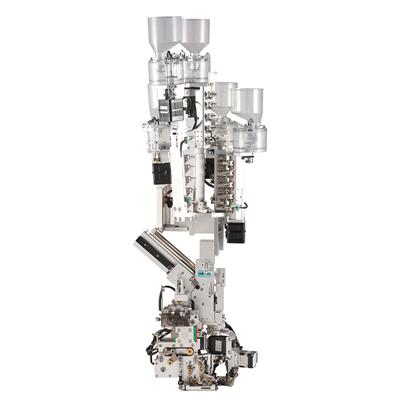

Optional Accessories

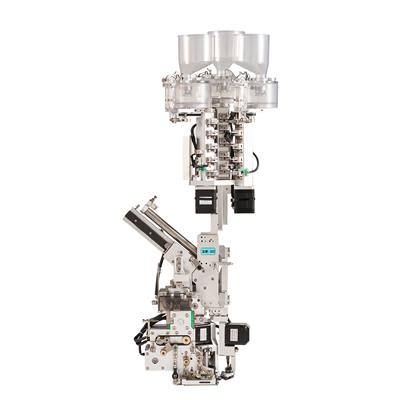

Depending on requirements, suitable hanging accessories can be selected, such as laser accessories, beads, sequins, simple rope braid decorations, simple towels, toothbrush decorations, etc., to enhance product performance and functional expandability.

🔍

After-sales Service and Warranty Policy

We provide comprehensive after-sales support and warranty services to ensure your investment is protected for the long term.

📅

Warranty Period

Computer control components provide a one-year warranty, and mechanical components provide a two-year warranty within 100 kilometers of the service point. During the warranty period, faulty components will be repaired or replaced free of charge.

🔧
